With the rapid development of LED lighting technology, LED track lights have become the preferred choice for commercial, exhibition, residential, and public spaces due to their flexible installation methods and excellent lighting effects.Based on Eurolight’s experience in selling LED track lights in Nigeria, this article details the specifications of track lights and compares the actual lighting effects corresponding to different power levels, helping users to make scientific choices and improve their efficiency and economic benefits.
What is LED track lights system?

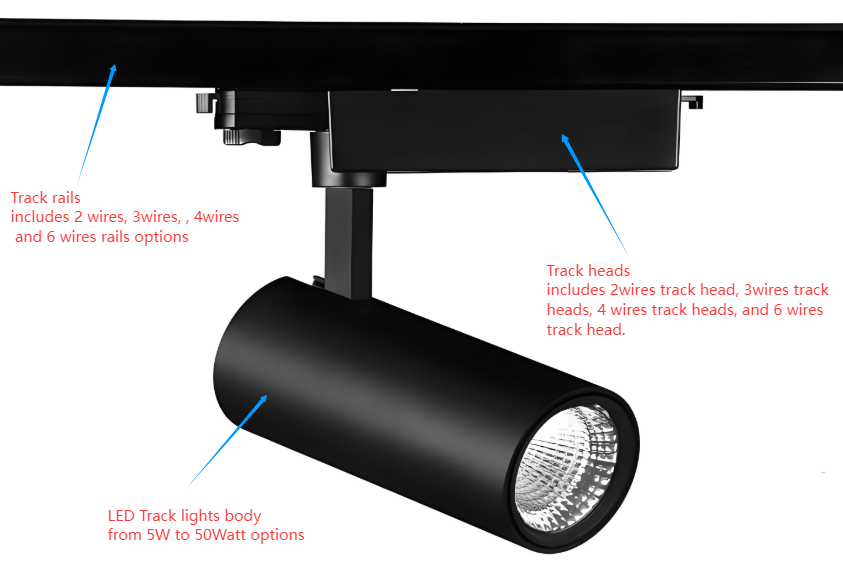

As the name suggests, track lights are LED lights with a track head mounted on a track rail. A track lighting system includes LED track lights and Track rail.
Track lights must be installed on matching track rails. The track contains a voltage input (220V AC in China, but lower voltage inputs can be customized). The track also contains conductive metal strips on both sides (high-quality copper, low-quality iron). The track light’s connector has a rotatable conductive copper plate. During installation, the conductive copper plate on the track light contacts the conductive metal strip inside the track, energizing the track light and illuminating it.

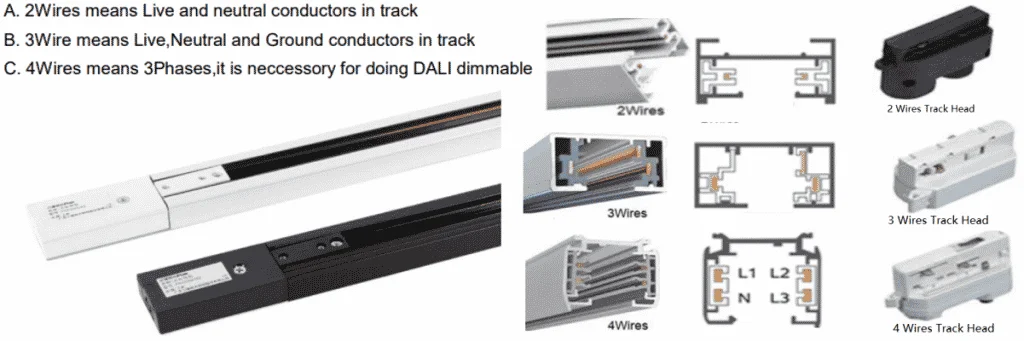

Track head & Track rail
As we said, LED track lights must be installed on matching track rails, which means the track head should match the track rail.

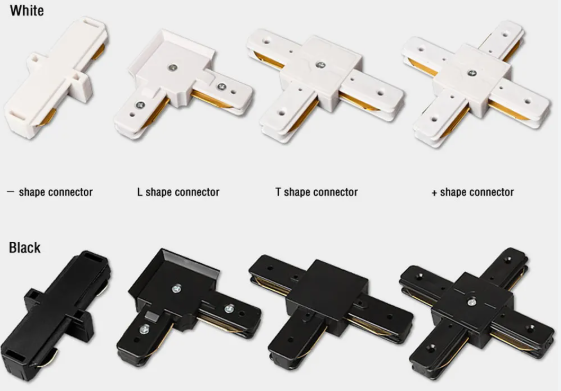

LED track lighting accessories
The led track lighting system can be DIY by these accessories, such as, to be U or L pattern for commercial areas.
LED Track Light Wattages & Application
The wattages of an LED track light directly determine its luminous efficiency and brightness output. Track lights on the market cover a wide range of power, generally ranging from 5W to 50W. The wattage selection should be determined based on lighting needs, usage environment, and energy consumption management.
| Wattages | Application area | Feture |
| 5W-10W | Home local lighting, cabinet lighting, display cabinet spotlights | Soft light, focused lighting, and good energy-saving effect |
| 10W-20W | Office local lighting, small shops, corridor lighting | Medium brightness, uniform light, suitable for daily working environment |
| 25W-30W | Shopping mall main lighting, exhibition hall, restaurant lighting | High brightness, large coverage area, suitable for areas that require accent lighting |
| 35W-50W | Industrial workshops, conference halls, stage lighting | Ultra-high brightness, concentrated lighting intensity |

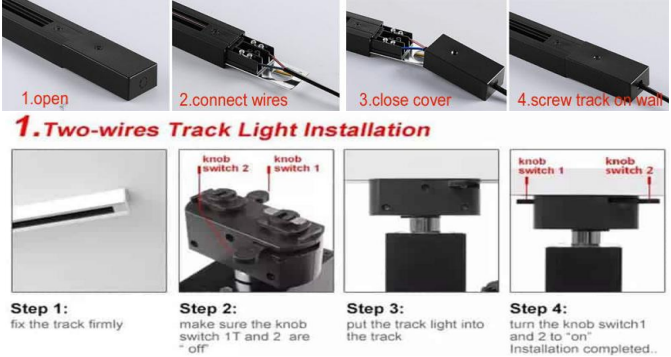

Installation of LED Track Lighting
As mentioned above, LED track lights include 2-wire, 3-wire, and 4-wire track lights, which correspond to the corresponding track bars. Different track lights have different points to pay attention to when installing them. Usually, the installation of LED track lights is the installation of a lighting system, including the installation of track rails, the installation of track lights, and the installation of corresponding accessories such as L shape, U shape, and T shape connector adapters.
