Backlit LED Panel Light 2×2

Backlit LED Panel Light 2×2

Model: GR-PL6060-D Series
Mounted: Recessed as standard, clip/surface/suspension options
LED lumens: 100-120lm/W output
CRI:>80
PF:>0.9
Color temperature: 3000K/4000K/6000K
Protection level: IP44 indoor use
Lifetime: >50000Hrs
Free flicker: Yes
Input voltage: 220-240VAC 50/60Hz
Beam angle: 120°
Material: metal bottom +aluminum frame+ PS diffuser plates
Certificates: CE RoHS
Warranty: 2/3 Years

Send Inquiry

Product Details
Description

Order model	Wattage	Lumens	Input voltage	Output voltage/current
GR-PL6060-30WD	30W	3600lm	220- 240VAC 50/60Hz	36VDC 750mA
GR-PL6060-40WD	40W	4000lm-4800lm		36VDC 950-1000mA
GR-PL6060-48WD	48W	4800lm-5200lm		36VDC 1100-1200mA

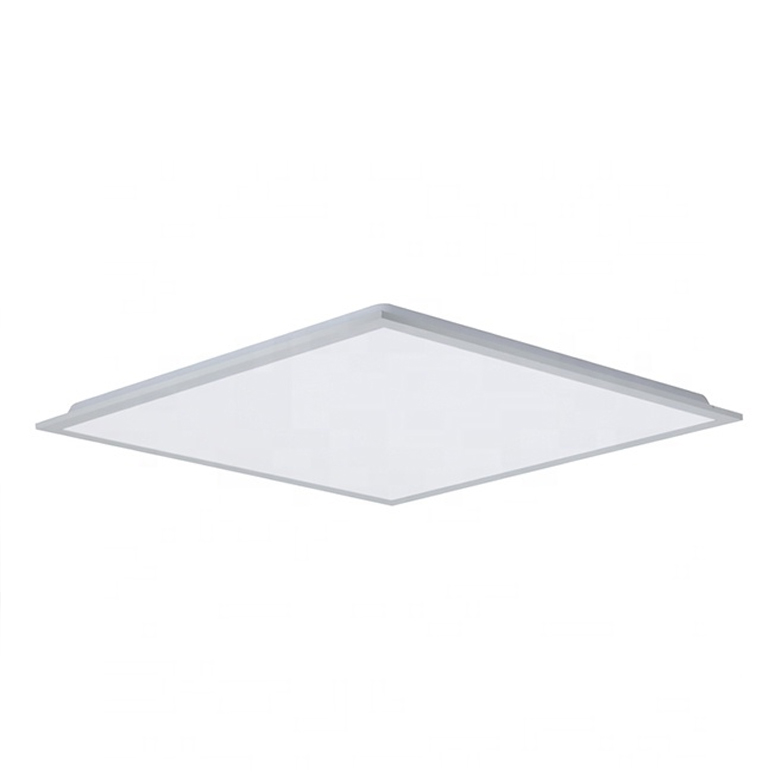

The 600x600mm backlit panel light adopts a direct emitting method of attaching the aluminum substrate to the iron chassis, which improves the efficiency of the lamp's lumen and saves material costs. It is widely used in various commercial places such as offices, subway stations, supermarkets, shopping malls, etc.

The light source uses Bridgelux SMD2835, and the light efficiency reaches 100-120lm/W output. With well-known power supplies such as LiFud/Eagleries or Philips Osram driver, the service life of the lamp is ensured to be more than 50000 hours.

At the same time, you can choose triac dimming, 0- 10V dimming, or DALI dimmable and emergency kits.

There are 4 ways with an additional accessory for installation for this backlit panel light 600x600mm as follows
