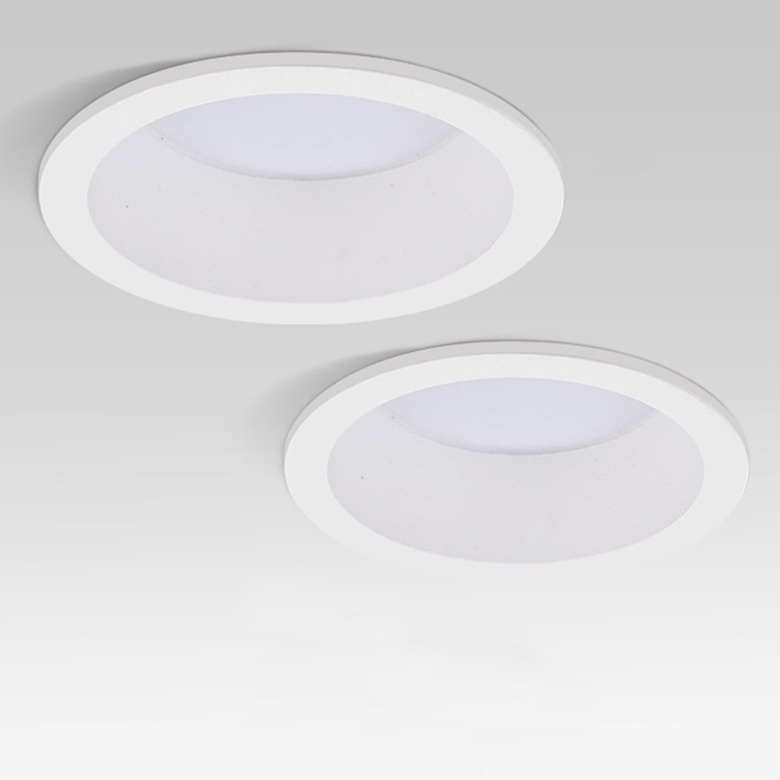

Deep Recessed LED Down Lights 7W-24W

Model: GR-DL-A-01 Series
Mounted: Recessed
Type: Deep UGR<19
LED lumens: 90-100lm/W output
LED Chips: Bridgelux or Osram SMD
CRI:>80
PF:>0.5 or >0.9
Color temperature: 2700- 6500 K
Protection level: IP44
Lifetime: >50000Hrs
Surge protection: 1- 2kV
LED Driver: Eagleries/LiFud/Philips brand
Input voltage: 220-240VAC 50/60Hz
Beam angle: 110°, wide distribution
Material: Die-cast aluminum body and PC Cover
Certificates: CE RoHS
Warranty: 2/3 Years
Control way: ON/OFF as standard, Triac dimmable/0-10V/DALI dimmable options.
Emergency kits can be an option as well

Send Inquiry

Product Details
Description

Order Model	GR-DL-7WA-01	GR-DL-12WA-01	GR-DL-15WA-01	GR-DL-18WA-01	GR-DL-24WA-01
Wattage	7w ± 5%	12w ± 5%	15w ± 5%	18w ± 5%	24w ± 5%
Lumens flux	630-700lm	1000-1200lm	1300-1500lm	1600-1800lm	2200-2400lm
Dimension	Ø95*H45mm	Ø115*H48mm	Ø138*H56mm	Ø170*H62mm	Ø170*H62mm
Hole cut	Ø75-80mm	Ø95-100mm	Ø125mm	Ø155mm	Ø155mm

The deep recessed downlight is a typical anti-glare downlight featuring a deep white frame, ensuring glareless with a quite low UGR rate. Equipped with top-quality Bridgelux or Osram SMD chips, it delivers high lumens of up to 100-120lm/120lm/W. Paired with premium control gear such as LiFud, Osram, or Philips, it has a remarkable lifespan of up to 50,000 hours. Additionally, designed with an IP44 rating, better than standard IP22 lights, this SMD LED downlight is an ideal choice for high-end commercial settings.
