Fixed square LED downlights single/double head in Nigeria

Fixed square LED downlights single/double head in Nigeria

Model: GR-DLG-A Series
Mounted: Recessed
Type: Single head, Twin heads, and Triple heads
LED lumens: 100lm/W output
LED Chips: Bridgelux/Osram
SDCM:<5
CRI:>90
Power factor :>0.5 or >0.9
Color temperature: 3000K/4000K/6000K
IP rating: IP22 non-waterproof
Surge protection: 1- 2kV
Input voltage: 220-240VAC 50/60Hz
Beam angle: 15/24/36° options
Material: Die-cast aluminum body and PMMA cover
Certificates: CE RoHS
Warranty: 3 Years
Control method: ON/OFF as standard, with options for Triac dimmable, 0-10V, and DALI dimmable.
Emergency kits can be an option as well

Send Inquiry

Product Details

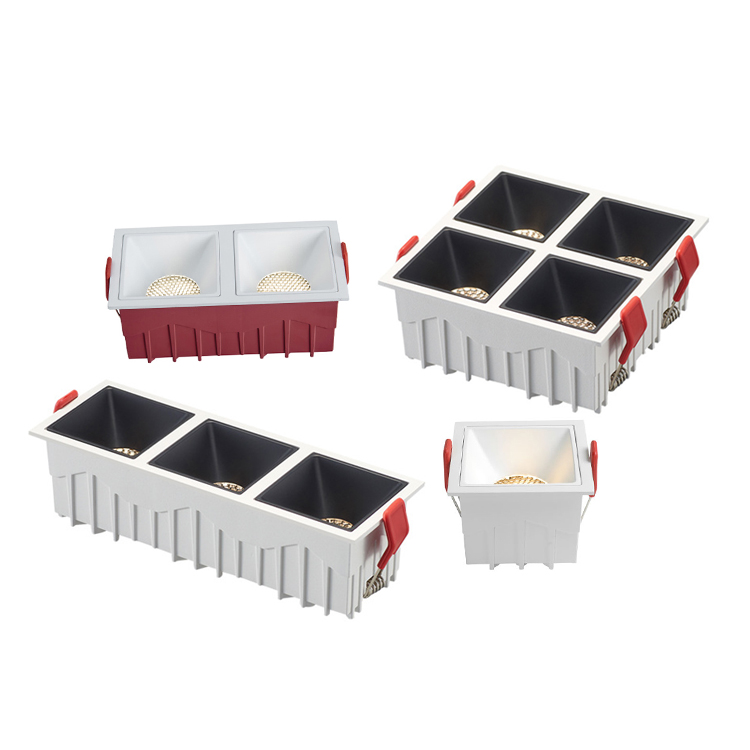

This grille downlight adopts a fixed deep anti-glare design and can choose a white or matt black reflector. The heat sink(housing) can be white/black powder-coated; it is also available with an extra net to achieve much better anti-glare performance. The beam angle can be 15/24/36° optional. Widely used for different commercial projects. Other extra functions, such as dimming/ emergency backup/Zigbee smart control, are also available.

Order Model	Wattages	Dimension	Cutout	Lumens	CRI	UGR	Input voltage
GR-DLG-10WA	10w	L85W85H60mm	L75*W75mm	900-1200lm	>90	<19	220-240VAC 50/60Hz
GR-DLG-10WA*2	20w	L168W85H60mm	L155*W75mm	2000-2400lm	>90	<19	220-240VAC 50/60Hz
GR-DLG-10WA*3	30w	L252W52H60mm	L240*W75mm	3000-3600lm	>90	<19	220-240VAC 50/60Hz
