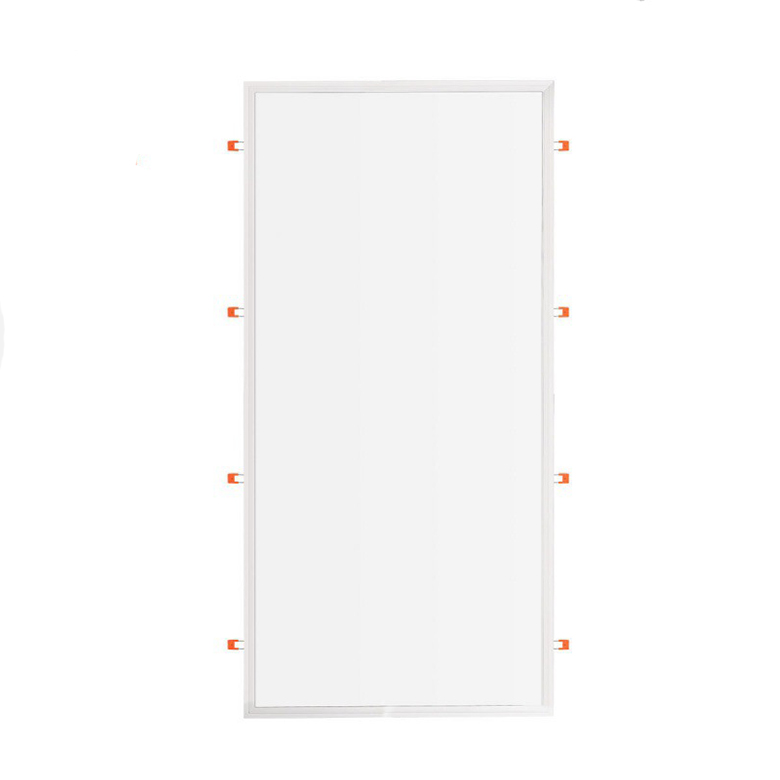

LED Backlit Panel Lights 1200×600

LED Backlit Panel Lights 1200×600

Model: GR-PL12060-D Series
Dimension: 1195*595*31mm
LED lumens: 100-120lm/W output
CRI:>80
PF:>0.9
Color temperature: 3000K/4000K/6000K
Protection level: IP44 indoor use
Lifetime: >50000Hrs
Free flicker: Yes
Input voltage: 220-240VAC 50/60Hz
Beam angle: 120°
Material: metal bottom +aluminum frame+ PS diffuser plates
Certificates: CE RoHS
Warranty: 2/3 Years

Send Inquiry

Product Details
Description

Order model	Wattage	Lumens	Input voltage	Output voltage/current	LED Driver QTY
GR-PL12060-50WD	50W	6000lm	220- 240VAC 50/60Hz	36VDC 1200mA	1PCS 50W Driver
GR-PL12060-72WD	72W	7200lm-8000lm		36VDC 950-1000mA*2	2pcs* 36W drivers
GR-PL12060-96WD	96W	8200lm-9000lm		36VDC 1100-1200mA*2	2pcs* 48w drivers

The 1200x600mm backlit panel light, also called LED panel light 2x4, adopts a direct emitting method of attaching the aluminum substrate to the iron chassis, which improves the efficiency of the lamp's lumen and saves material costs. It is widely used in various commercial places such as offices, subway stations, supermarkets, shopping malls, etc.

The metal bottom we are using is 3.0mm thick and 1.0 mm-thick PS diffuser plate and aluminum frame, the complete product will be very strong. The light source uses Bridgelux SMD2835, and the light efficiency reaches 100-120lm/W output. With well-known power supplies such as LiFud/Eagleries or Philips Osram driver, the service life of the lamp is ensured to be more than 50000 hours.

At the same time, you can choose triac dimming, 0- 10V dimming, or DALI dimmable and emergency kits.

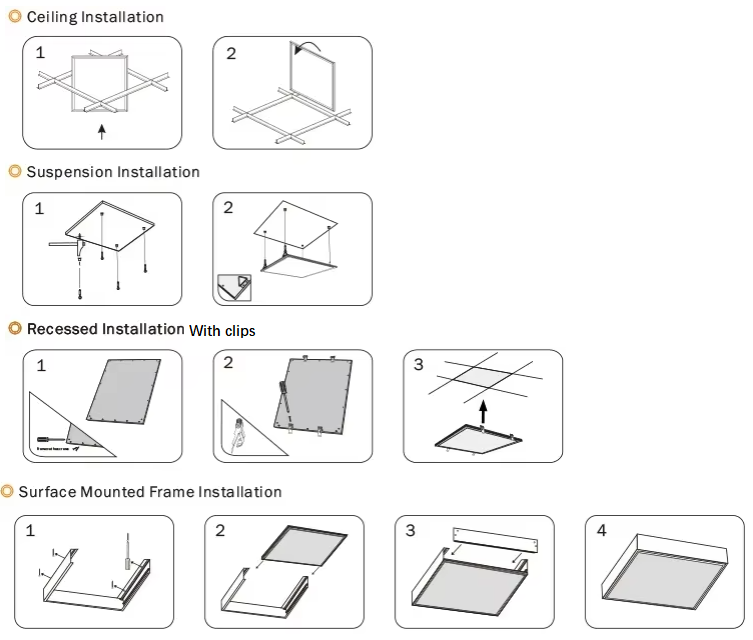

There are 4 ways with an additional accessory for installation for this backlit panel light 4x2 as follows
