Recessed Bathroom Downlights 7W-40W

Model: GR-DL-W Series
Mounted: Recessed
LED lumens: 90-100lm/W output
LED Chips: Bridgelux COB
SDCM:<5
CRI:>90
PF:>0.5 or >0.9
Color temperature: 2700- 6500 K
Protection level: IP65 Weatherproof
Lifetime: >50000Hrs
Surge protection: 1- 2kV
Input voltage: 220-240VAC 50/60Hz
Beam angle: 120°, wide distribution
Material: Die-cast aluminum body and glass cover
Certificates: CE RoHS
Warranty: 2/3 Years
Control way: ON/OFF as standard, Triac dimmable/0-10V/DALI dimmable options.
Emergency kits can be an option as well

Send Inquiry

Product Details
Description

Order Model	GR-DL-7WW	GR-DL-12WW	GR-DL-15WW	GR-DL-20WW	GR-DL-30WW	GR-DL-40WW
Wattages	7W ± 5%	12W ± 5%	15W ± 5%	20W ± 5%	30W ± 5%	40W ± 5%
Lumens flux	630-700lm	1000-1200lm	1300-1500lm	1800-2000lm	2700-3000lm	3600-4000lm
Dimension(mm)	Ø95*H45mm	Ø115*H50mm	Ø145*H60mm	Ø160*H60	Ø190*H60	Ø230*H75
Cut hole (mm)	Ø75mm	Ø95mm	Ø125mm	Ø145mm	Ø175mm	Ø205mm

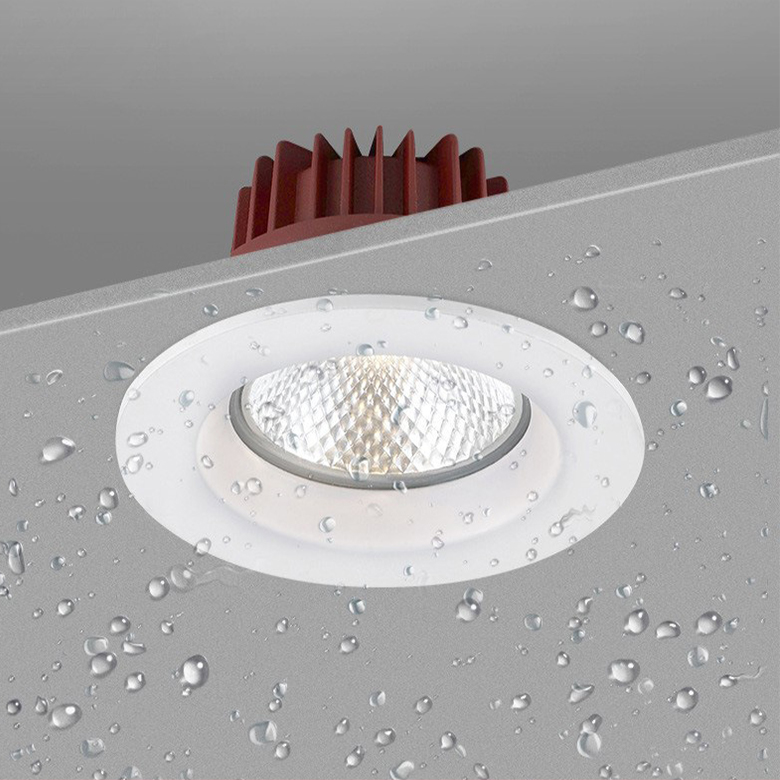

This is a kind of recessed waterproof downlight, designed for bathrooms, showers, washrooms, and toilets, with waterproof rubber to improve the protection level. The COB source is standard, SMD type is also available if needed. And with a wide distribution of 120° beam angle. Including 2.5 inches, 3 inches, 4 inches, 5 inches, 6 inches, and 8 inches, is ideal for commercial lighting because of its energy efficiency and cost-saving.

The standard LED driver we are using is an IP20 indoor type with LiFud/Eagleries brand, but available to do it with IP65 waterproof led driver if needed.
