2ft/3ft/4ft/5ft T5 LED Tube Lights with Built in Driver Replacement

2ft/3ft/4ft/5ft T5 LED Tube Lights with Built in Driver Replacement

Model: GR-T5-A
Length: 2ft/3ft/4ft/5ft
Base: G5 2pins
LED lumens: 100-110lm/w
CRI:>80
PF:>0.5 or >0.9
Color temperature: 3000K/4000K/6000K
Protection level: IP20 indoor use only
Lifetime: >50000Hrs
Free flicker: Yes
Input voltage: 220-240VAC 50/60Hz
Beam angle: 120°
Material: Aluminum body +PC cover
Certificates: CE RoHS
Warranty: 2 Years
Input: Double-end input as standard; Single input can be customized.

Send Inquiry

Product Details
Description
Installation & Replacement Wiring Drawing

Order Model	GR-T560-A	GR-T590-A	GR-T5120-A	GR-T5150-A
Dimension	Ø16*L549mm	Ø16*L849mm	Ø16*L1149mm	Ø16*L1449mm
Base	G5 2pin	G5 2pin	G5 2pin	G5 2pin
Wattages	8-9W	13W	18W	20-22W
Lumens flux	900lm	1300lm	1800lm	2200lm
Materials	Aluminum body+PC Cover	Aluminum body+PC Cover	Aluminum body+PC Cover	Aluminum body+PC Cover

This T5 LED tube light is made of an aluminum body, a frosted PC cover, and a built-in LED driver; it is easier to do replacement for old traditional t5 fluorescent tube lights. The standard input is double end, but single side input is available to do as well. The length includes 600mm 900mm 1200mm and 1500mm.

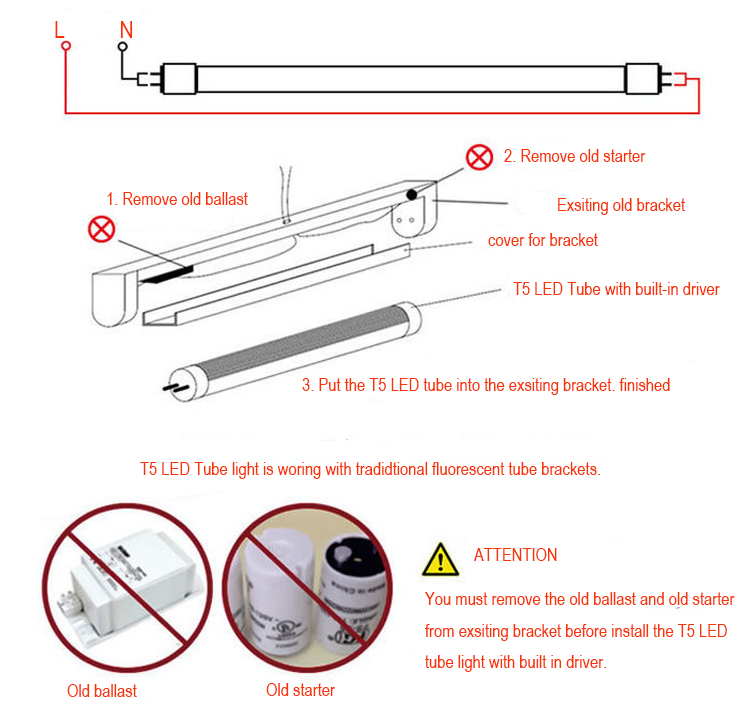

T5 LED Tube light replacement wiring drawing
